本文是k8s安装教程

Kubernetes 集群 1.29.2 安装指南

前言

Kubernetes（K8s）启动流程：

linux > docker > cri-docker > kubectl > AS/CM/SCH
- AS: apiserver
- CM: controller-manager
- SCH: scheduler

安装方式对比：

安装方式	运行方式	优点	缺点
kubeadm	容器化	简单、自愈	掩盖细节，不便于理解
二进制	系统进程	灵活配置	难理解

一、准备工作

下载 Rocky Linux 9 镜像：
- 官方地址：https://rockylinux.org/zh-CN/download
- 阿里云镜像站：https://mirrors.aliyun.com/rockylinux/9/isos/x86_64/

二、系统配置

架构：一主两从（1 master, 2 nodes）
配置：4C/4G/100G

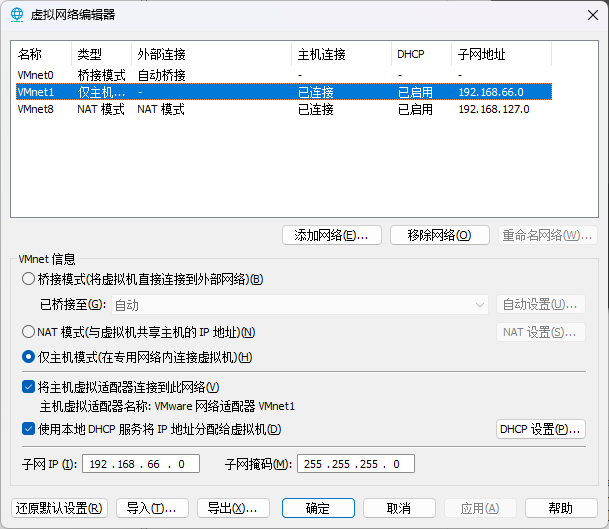

网络：
- 掩码：255.255.255.0
- 网关：192.168.66.1
- IP：
  - master: 192.168.66.11
  - node1: 192.168.66.12
  - node2: 192.168.66.13

三、环境初始化

1. 固定 IP 配置

cat /etc/NetworkManager/system-connections/enp6s18.nmconnection
[ipv4]
method=manual
address=192.168.66.11/24,192.168.66.1
dns=223.5.5.5;119.29.29.29

2. 配置镜像源

sed -e 's|^mirrorlist=|#mirrorlist=|g' \
    -e 's|^#baseurl=http://dl.rockylinux.org/$contentdir|baseurl=https://mirrors.aliyun.com/rockylinux|g' \
    -i.bak \
    /etc/yum.repos.d/Rocky-*.repo

dnf makecache

3. 关闭防火墙与 SELinux

systemctl stop firewalld
systemctl disable firewalld
yum -y install iptables-services
systemctl start iptables
iptables -F
systemctl enable iptables
service iptables save

setenforce 0
sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

4. 关闭 swap

swapoff -a
sed -i 's:/dev/mapper/rl-swap:#/dev/mapper/rl-swap:g' /etc/fstab

5. 修改主机名与本地解析

hostnamectl set-hostname k8s-master      # master
hostnamectl set-hostname k8s-node01      # node01
hostnamectl set-hostname k8s-node02      # node02

vi /etc/hosts
192.168.66.11 k8s-master m1
192.168.66.12 k8s-node01 n1
192.168.66.13 k8s-node02 n2

6. 安装 ipvs 与开启路由转发

yum install -y ipvsadm
echo 'net.ipv4.ip_forward=1' >> /etc/sysctl.conf
sysctl -p

7. 安装 Docker

dnf config-manager --add-repo https://mirrors.ustc.edu.cn/docker-ce/linux/centos/docker-ce.repo
sed -e 's|download.docker.com|mirrors.ustc.edu.cn/docker-ce|g' /etc/yum.repos.d/docker-ce.repo
yum -y install docker-ce

配置 Docker：

cat > /etc/docker/daemon.json <<EOF
{
  "data-root": "/data/docker",
  "exec-opts": ["native.cgroupdriver=systemd"],
  "log-driver": "json-file",
  "log-opts": {
    "max-size": "100m",
    "max-file": "100"
  },
  "insecure-registries": ["harbor.xinxainghf.com"],
  "registry-mirrors": [
    "https://proxy.1panel.live",
    "https://docker.1panel.top",
    "https://docker.m.daocloud.io",
    "https://docker.1ms.run",
    "https://docker.ketches.cn"
  ]
}
EOF

mkdir -p /etc/systemd/system/docker.service.d
systemctl daemon-reload && systemctl restart docker && systemctl enable docker

8. 安装 cri-docker

yum -y install wget
wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.9/cri-dockerd-0.3.9.amd64.tgz
tar -xvf cri-dockerd-0.3.9.amd64.tgz
cp cri-dockerd/cri-dockerd /usr/bin/
scp cri-dockerd/cri-dockerd root@n1:/usr/bin/
scp cri-dockerd/cri-dockerd root@n2:/usr/bin/

配置 systemd 服务（仅 master）：

cat > /usr/lib/systemd/system/cri-docker.service <<EOF
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=cri-docker.socket

[Service]
Type=notify
ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.8
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always
StartLimitBurst=3
StartLimitInterval=60s
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target
EOF

cat > /usr/lib/systemd/system/cri-docker.socket <<EOF
[Unit]
Description=CRI Docker Socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker

[Install]
WantedBy=sockets.target
EOF

scp /usr/lib/systemd/system/cri-docker.* root@n1:/usr/lib/systemd/system/
scp /usr/lib/systemd/system/cri-docker.* root@n2:/usr/lib/systemd/system/

启动 cri-docker：

systemctl daemon-reload
systemctl enable cri-docker
systemctl start cri-docker
systemctl is-active cri-docker

9. 安装 kubeadm、kubectl、kubelet

添加阿里云源：

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/
enabled=1
gpgcheck=1
gpgkey=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/repodata/repomd.xml.key
EOF

安装指定版本：

yum install -y kubelet-1.29.2 kubectl-1.29.2 kubeadm-1.29.2
systemctl enable kubelet.service
sed -i 's/\# exclude/exclude/' /etc/yum.repos.d/kubernetes.repo

四、集群初始化

Master 节点初始化：

kubeadm init \
  --apiserver-advertise-address=192.168.66.11 \
  --image-repository registry.aliyuncs.com/google_containers \
  --kubernetes-version 1.29.2 \
  --service-cidr=10.10.0.0/12 \
  --pod-network-cidr=10.244.0.0/16 \
  --ignore-preflight-errors=all \
  --cri-socket unix:///var/run/cri-dockerd.sock

配置 kubectl：

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

Node 节点加入集群：

kubeadm join 192.168.66.11:6443 \
  --token <token> \
  --discovery-token-ca-cert-hash sha256:<hash> \
  --cri-socket unix:///var/run/cri-dockerd.sock

若 token 过期，使用以下命令重新生成：

kubeadm token create --print-join-command

五、部署 Calico 网络插件

1. 下载release并上传到虚拟机

https://github.com/projectcalico/calico/releases/download/v3.30.3/release-v3.30.3.tgz

2.解压缩

tar -zcvf release-v3.30.3.tgz
scp -r release-v3.30.3 root@n1:/root
scp -r release-v3.30.3 root@n2:/root

在三台机器上

cd release-v3.30.3

docker load -i calico-images/calico-cni.tar
docker load -i calico-images/calico-node.tar
docker load -i calico-images/calico-typha.tar
docker load -i calico-images/calico-kube-controllers.tar

3. 修改 calico-typha.yaml

- name: CALICO_IPV4POOL_CIDR
  value: "10.244.0.0/16"

- name: CALICO_IPV4POOL_IPIP
  value: "Off"

4. 应用配置

kubectl apply -f calico-typha.yaml

六、验证集群状态

kubectl get pod -A
kubectl get node

所有组件状态为 Running，节点状态为 Ready，即集群搭建成功。
